WELDINGER TIG welding unit WE 201PW plus DC HF

Item number: 5641

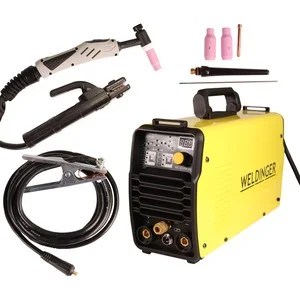

WELDINGER DC TIG welding inverter WE 201 PW plus with 200 A, HF/lift ignition, pulse, 2 and 4T function
Handy welding machine for working on steel, stainless steel and copper parts and for welding pipes and boilers
Digital control with clearly adjustable welding parameters, MMA with VRD, Hot Start and Arc Force are adjustable
with 4 m TIG hosepack SR 17, earth and electrode holder cable, welds electrodes up to 4 mm at 160 A
IGBT inverter with temperature-controlled fan cooling, dimensions (WxHxD) 125x225x380 mm, weight 6.2 kg

WELDINGER WE 201PW DC plus with HF ignition

Handy inverter for TIG and electrode welding

with temperature-controlled fan cooling

The WELDINGER brand stands for affordable, high-quality technology. Thanks to its clear menu navigation, the WE 201 PW DC plus is equally suitable for beginners and advanced users. Its equipment is exemplary for this class: either HF ignition or brush ignition is possible, the device has pulse, 2T/4T and individually adjustable parameters for excellent TIG welding results.

A fully-fledged MMA welding unit is also integrated. In addition to the welding current, Hot Start and Arc Force are adjustable and the VRD safety function can be activated. The welding machine is equipped with an SR.17 TIG hosepack, an electrode holder cable and an earth cable. Welding of steel, stainless steel and copper is possible in DC mode.

In the technically updated version, the WE 201 PW DC also comes with temperature-controlled fan cooling: The fan does not run permanently, but only when a certain operating temperature of the components is reached during welding. After cooling down, the fan goes back into sleep mode.

TIG functionality
– Adjustable welding current from 5-200 A
– Individually controllable TIG parameters in a clear diagram:

Starting current	5-200 A
Rise time	0-5 s
Gas flow	0-1 s
Peak current	5-200 A
Pulse duty cycle	5-100%
Pulse rate	0.5-100 Hz
Base current	5-200 A
Gas overrun	0-5 s
Valley stream	5-200 A

– Pulse mode
– 2T or 4T operation
– Optional HF or lift ignition possible
– Usable electrodes 0.5-3.2 mm

Electrode welding functionality (MMA):
– Adjustable welding current from 20-200 A
– the device welds electrodes up to 4 mm in diameter at a maximum welding current of 200 A
– Hot-start function for welding start without electrode sticking (adjustable (1-10)
– Arc Force regulates the current value to stabilize the arc (adjustable 1-10)
– Anti-stick function reduces the welding current after sticking
– Usable electrodes 1.6-4 mm
– VRD: When the inverter is switched on, the welding voltage is automatically reduced to a safe value if no arc is present. VRD can be switched on or off as required. This function reduces the risk of accidents if you accidentally touch the electrode during work breaks.

The gas hose is fitted with a quick-release fastener on the device and can be removed in seconds for unrestricted electrode welding. To supply argon, you need an inert gas pressure regulator (item 4410) and an argon cylinder. For an optimum start, we recommend the basic TIG wear part set 1 for the TIG welding set type 17/18/26/45V25 in 1.6 and 2.4 mm.

Technical data WELDINGER TIG welding unit WE 201PW plus DC HF

Mains connection	230 V 50/60 Hz
Mains fuse	16 A inert
for electrode diameter	1.6 – 4.0 mm
TIG duty cycle	100 % 100 A 60 % 129 A
Insulation class	IP21
Open circuit voltage	64 V
Weight	6.2 kg
Dimensions (D x W x H):	380 x 125 x 225 mm

Scope of delivery

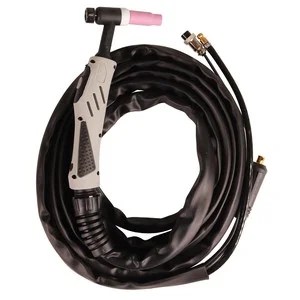

WELDINGER TIG welder WE 201PW plus DC HF hosepack SR 17with 4 m cable 25 ^mm²

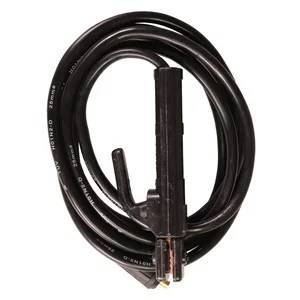

Earth cable and electrode holder cable with 9 mm mandrel
Gas hose 1.5 m with all connection accessories 1/4″ right

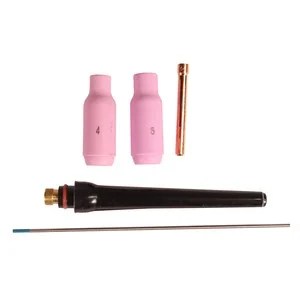

Ceramic nozzle size 5
Clamping sleeve 1.6 mm
Clamping sleeve housing 1.6 mm
Burner cap long
German operating instructions
